The Darracq V8 - Crank & crankcases

V8 crank Darracq crankshaft

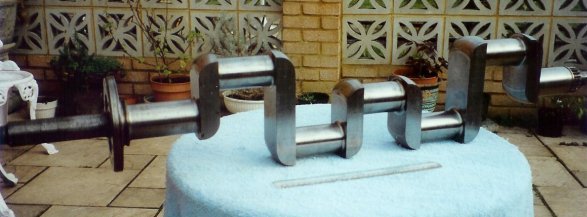

The crank is made from solid, and is nearly 1 metre long 		V8 crank
V8 crankcase Darracq crankcases V8 crankcase

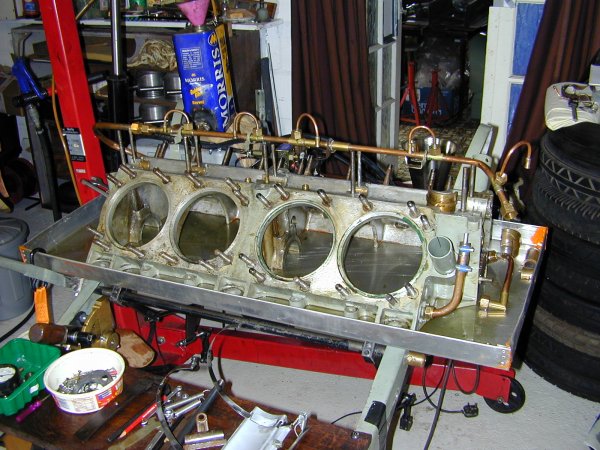

V8 crankcase Upper crankcase has a longitudinal oil gallery, just visible at the top of the righthand hole, this squirts oil horizontally at the bigends. The crankcase is in a tray ready for flow testing, I need to determine what delivery pressure is required for the the squirts reach the crank.

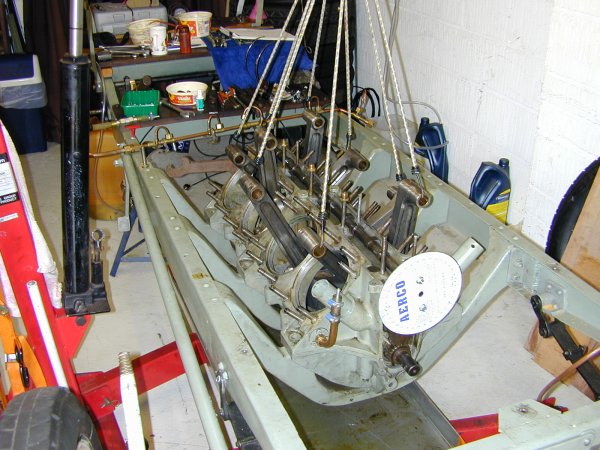

The oil pipes along the top deliver oil to the three main bearings and to two drip holes for splash lubrication
